Next-level solar mounting.
A residential system designed with contractors to be better at every step — from the warehouse to the jobsite through a lifetime of service. Faster installs, cleaner arrays, a leakproof guarantee.
Better at every step.
The Pegasus Rail System pairs a strong, low-profile rail with the Multi-Clamp and No-Tool Splice for an install that just keeps moving.

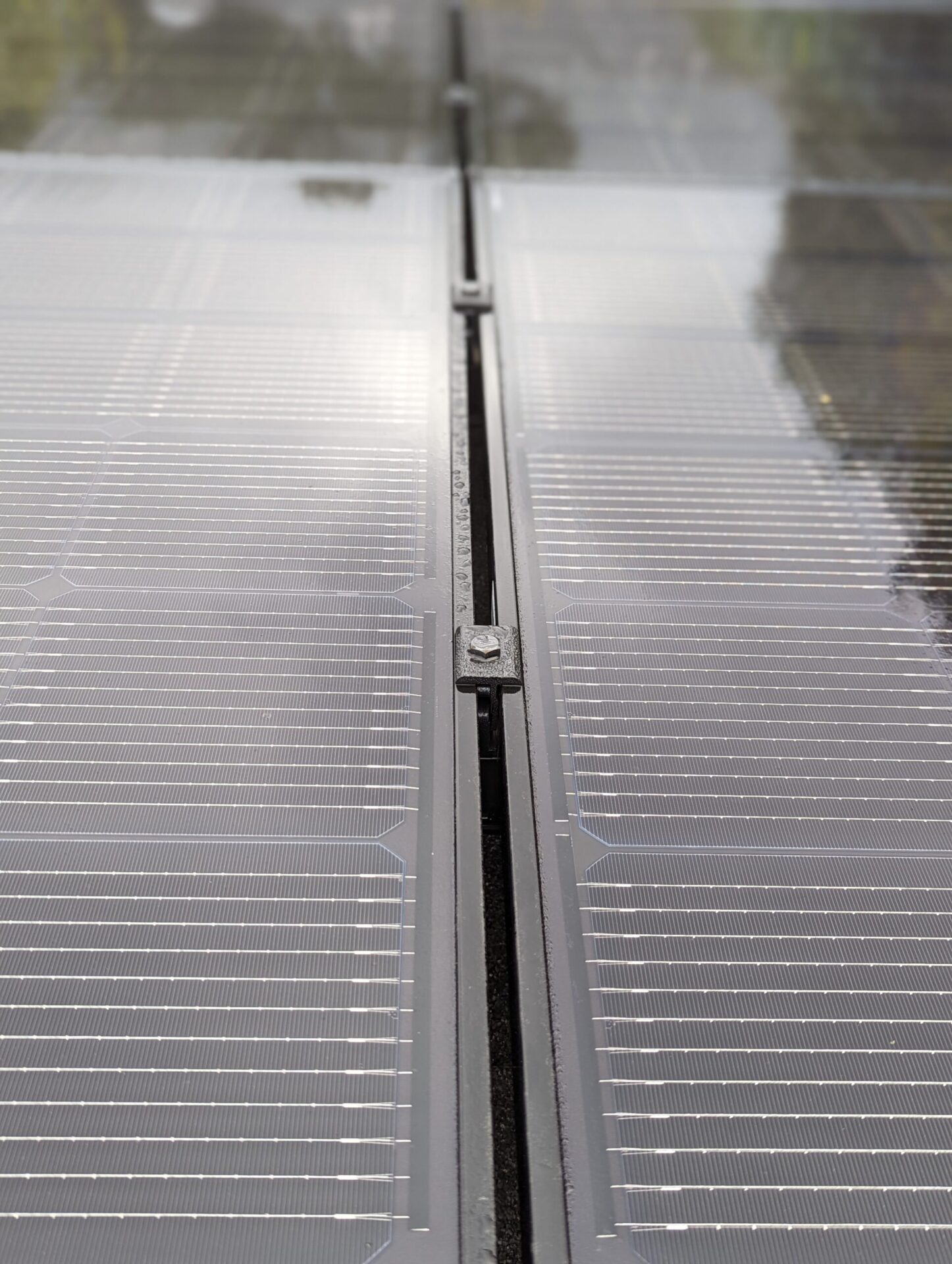

- Industry's narrowest module gap

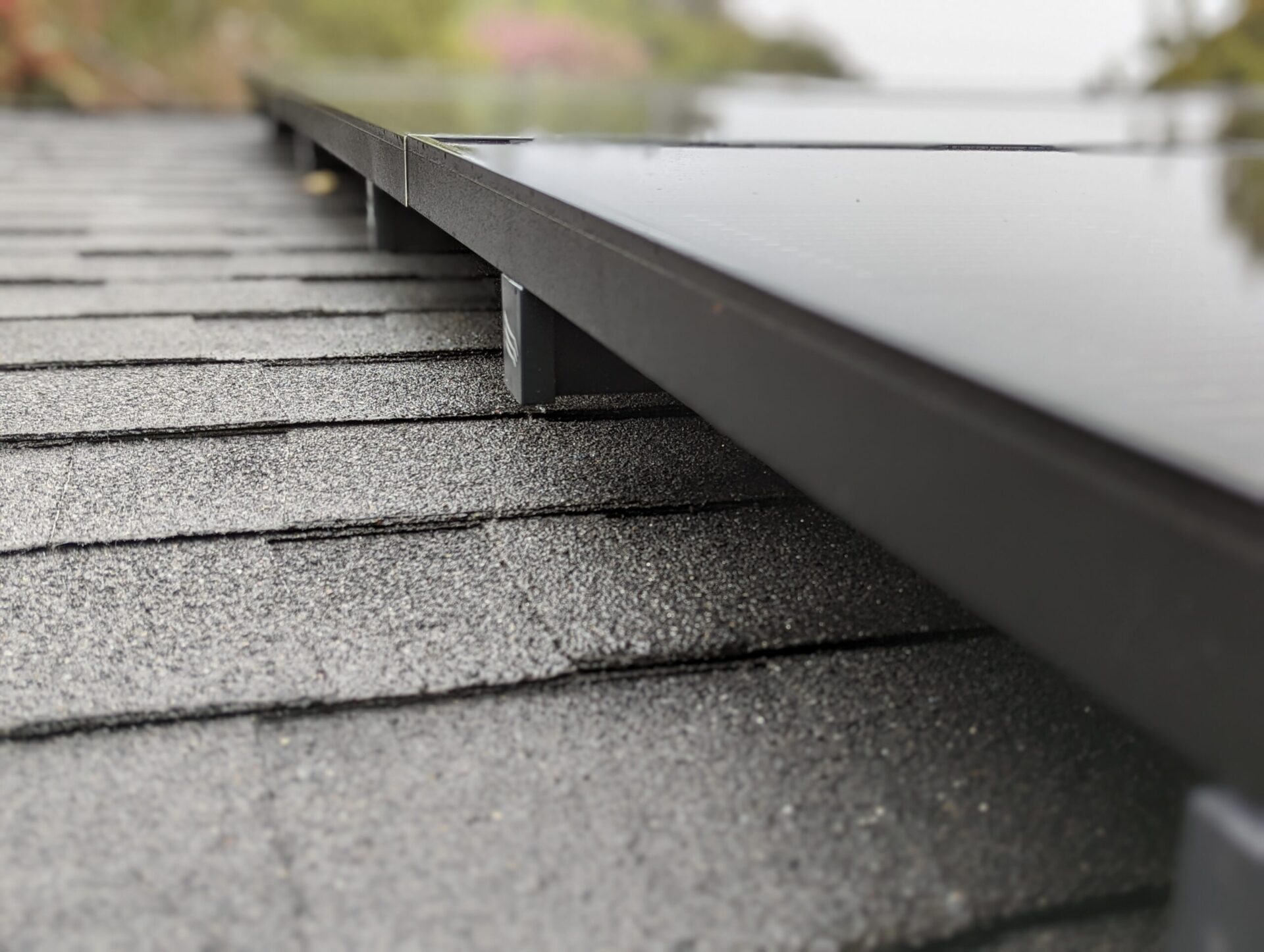

- All-black finish with hidden end clamps
- Water-draining end caps
One clamp, every panel.
A single clamp accommodates 30–40 mm modules. Click-and-stay positioning holds on steep roofs, prevents misalignment during tightening, and works wire-free.
Connect rail instantly.
Splice rail anywhere along the span — no tools, no span limitations. Structural support, automatic bonding, and full clearance for mounts, clamps and wiring.
Goodbye, zip-ties.
An integrated wire-tray for connectors and cables, snap-in slip-resistant clips, and stainless-steel cable grips for trunk lines — a clean array that stays clean.
Bonded as you build.
A north-south bonding jumper clicks into position to bond panel rows, replacing copper wire and allowing a single ground lug per array.
Technical specifications
| Compatible panels | 30–40 mm frame modules |
|---|---|
| Rail lengths | 7 ft and 14 ft |
| Finishes | Mill and Black |
| Certifications | UL2703, Class A fire rating |
| Warranty | 25 years |
Why installers switch
- Fewer parts up the ladder — boxes average ~14 kg
- Click-to-place hardware speeds every row
- Engineered for Canadian snow and wind loads
- Backed by the InstaFlash leakproof guarantee
Sealed on contact. Backed for life.
Pre-sealed mounts that make every roof penetration watertight the moment it's set — no pilot holes, no caulking.
ButylFoot
For composition-shingle roofs. A pre-installed, non-hardening butyl sealant compresses into every crevice for instant waterproofing.
Comp Mount
The everyday workhorse for shingle roofs — fast to set, fully bonded, and compatible across the rail system.
Tile Scissor Mount
An adjustable mount that conforms to tile profiles for a secure, weather-sealed attachment.
Residential flat roofs, solved.
InstaTilt brings the simplicity of the rail system to low-slope residential roofs with a fixed-tilt solution that goes down fast and sheds water cleanly.
- Pre-set tilt for consistent rows
- Sealed attachments, InstaFlash-backed
- Snow-load engineered for Canada
The details that finish the job.
MLPE Mount
Tidy attachment for micro-inverters and optimizers, right on the rail.
Bondbox
Reliable grounding for a code-ready array.
Cable Grips
Stainless-steel grips that secure trunk lines for the long haul.
End Caps
Water-draining caps for a clean, finished rail edge.
Spec Pegasus on your next residential job.
Design in Glide, find a distributor, or talk to our Canadian team.
